Product Description
These ultra-flexible portable speakers feature adjustable line array systems that provide 180 degrees of premium sound to fill practically any venue

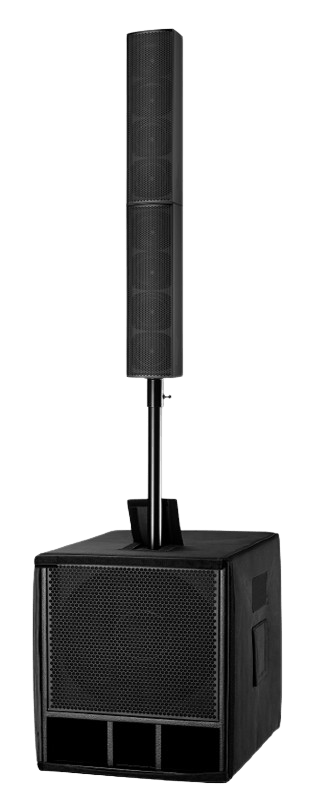

Sound Column
Frequency(+/-3db): 110HZ-17kHZ Rms Power: 240W Peak Power: 500W Impedance: 8 Ohm Sensitivity(1M/1W): 91db Drivers 4×4〞 N.W:kg

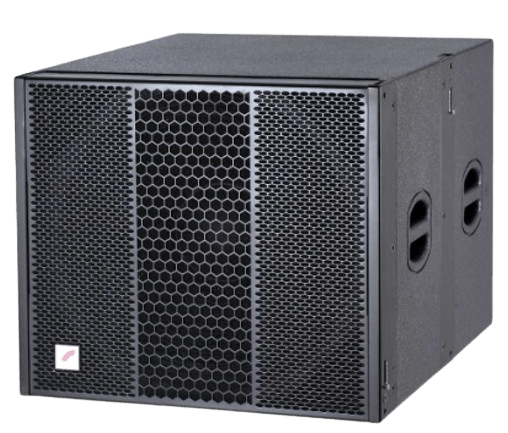

Active Subwoofer
Frequency(+/-3db): 30HZ-250HZ Rms Power: 700W Peak Power: 1400W Impedance: 8 Ohm Sensitivity(1M/1W): 98db Drivers 1×15〞220 N.W:6.8kg

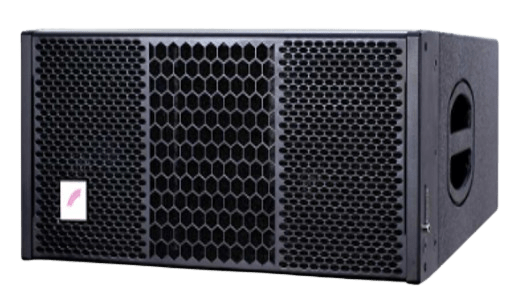

Dual 8-inch full-range boxes
Components unit: LF: 2 x 8" HF: 1 x 3" Frequency Response: 70Hz - 18kHz (±3dB) Sensitivity(1W/1M) Sensitivity: 98dB Maximum SPL Maximum sound pressure level: 124dB Rated Power: 400W Impedance nominal impedance: 8 Ohm Crossover frequency: 1.3 kHz Dispersion(-6dB) Directivity: 90⁰H x 14⁰V Connectors: 2xNL4 Speakon Riggings: Standard rigging hardware

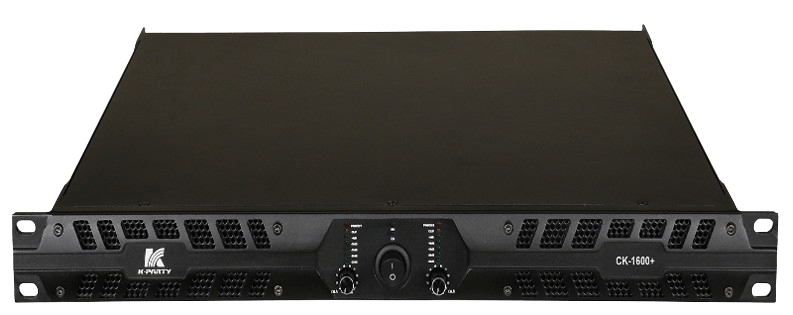

Professional amplifier
CK series power amplifier, 1U ultra-thin design. ClassD power amplifier module, active power factor correction technology can operate stably at full voltage (90V-264V); it can provide various protections such as overload, overheating, and overvoltage, and provide maximum power output in a safe state. 8Ω rated power: 1300W×2 Frequency response range: 20Hz-20KHz+0/-0.5dB Total harmonic distortion plus noise THD+N: <0.05%@8Ω 1KHz Signal-to-noise ratio S/N rate:>104dB Conversion rate: 16V /μs damping coefficient:>200@8Ω Separation:>70dB@8Ω 1KHz Input impedance: 20KΩ (balance)/10KΩ (unbalance) Input sensitivity: 0.775V/1.0V/1.4V Height: 1U
