Channel mode:20 DMX512 Channel
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matix, four tact switch, 180° turning show
Color wheel: one color wheel,14 kinds of color chips in one color wheel
Gobo: 17 gobos
Effect Wheel: Rotation eight prism, effect move , frost
0-100% mechanical dimming,
mechanical dimming and free dimming available.
Strobe macro control available.
Lens optical system achanical fouce .beam angle 0~4°
IP level :IP20
Magnetic ballast and AC/Dc power supply

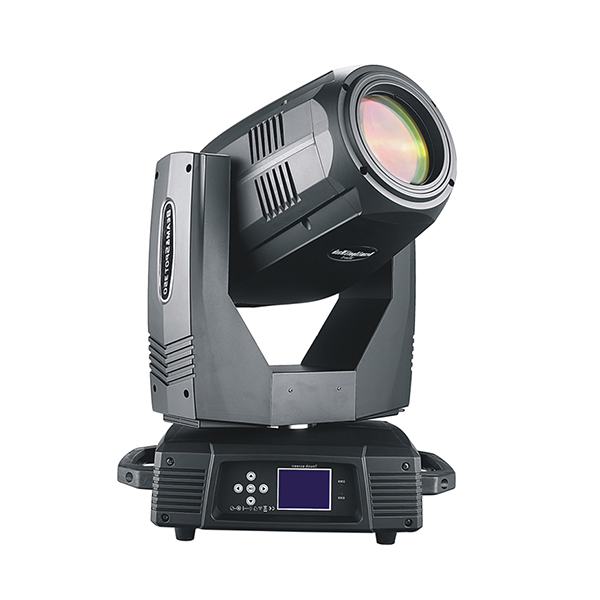

17R 350W 3in1 Spot/Wash/Beam Moving Head Stage Lights
prdouct name | 17R 350watt 3in1 Spot/Wash/Beam Moving Head Lights |
Voltage | 90~264Vac/50-60Hz |
Ballast | electronic ballast 380V |
Lamp | Osram 17R 350W |
Color temperature | 11000K |
Average Lifespan | 2000H |
Gobo | 17 fixed gobo + blank gobo with 12 glass rotation + blank gobo |
Prism | prism 16 and prism 32, two two-way rotating prism plate, beam angle can be freely scaled |
Lens | high precision optical lens |
Wash effect | adjustable Wash effects angle |
Pan/Tilt | X axis 540 Y axis 240 automatically accurate positioning |
Beam angle | parallel beam angle of 0 ° -2.3 ° spray angle of 8 ° light |
Strobe | Strobe double structure, 0.5-14 times / sec adjustable |
Control mode | Standard DMX512, Automatic and Master/ slave mode |
Scanning speed | X to 3.0 seconds / 540 degrees, Y to 2.0 seconds / 250 degrees |
Specific | Controller can open the lamp and reset, including delaying function |
Profile case | high-temperature plastic shell, cold molded high-strength alloy core material |
Weight | 23KG |
Package | 48*38.5*55CM |
20m | 186700Lux |
40m | 48175Lux |
60m | 20855Lux |
